High-Quality Auto Parts for Safe and Reliable Performance

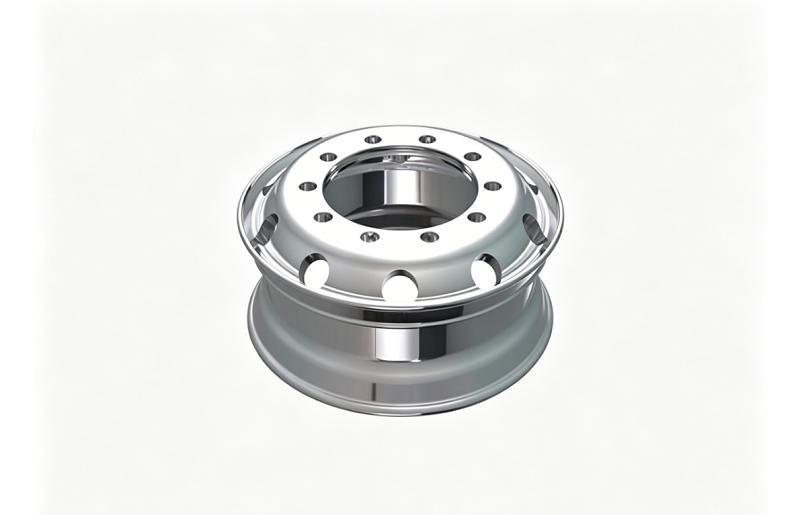

Factory-stock 22.5×8.25 forged aluminum wheels; compatible with front axles of both buses and tractor units, and suitable for the full range of 22.5-inch narrow-section tubeless tires. Custom laser marking and bulk ordering available.
Material
| item | parameter |
| Specification | 22.5×8.25 Tubeless Forged Aluminum Wheel |
| Wrought aluminum alloy | |
| PCD | 335 mm, 10 mounting holes |
| CBD | 281.2mm |
| Bolt hole diameter | Φ32mm |
| INSET | 144mm，OUTSET 167mm |
| Web thickness | 23mm |
| Weight per unit | 25.1kg（Steel wheel of the same specification≈43～50kg） |
| Standard air nozzle | MS70-7 Built-in Vacuum Nozzle |
| Compatible tires | 11R22.5、275/80R22.5、295/80R22.5、255/70R22.5 |
